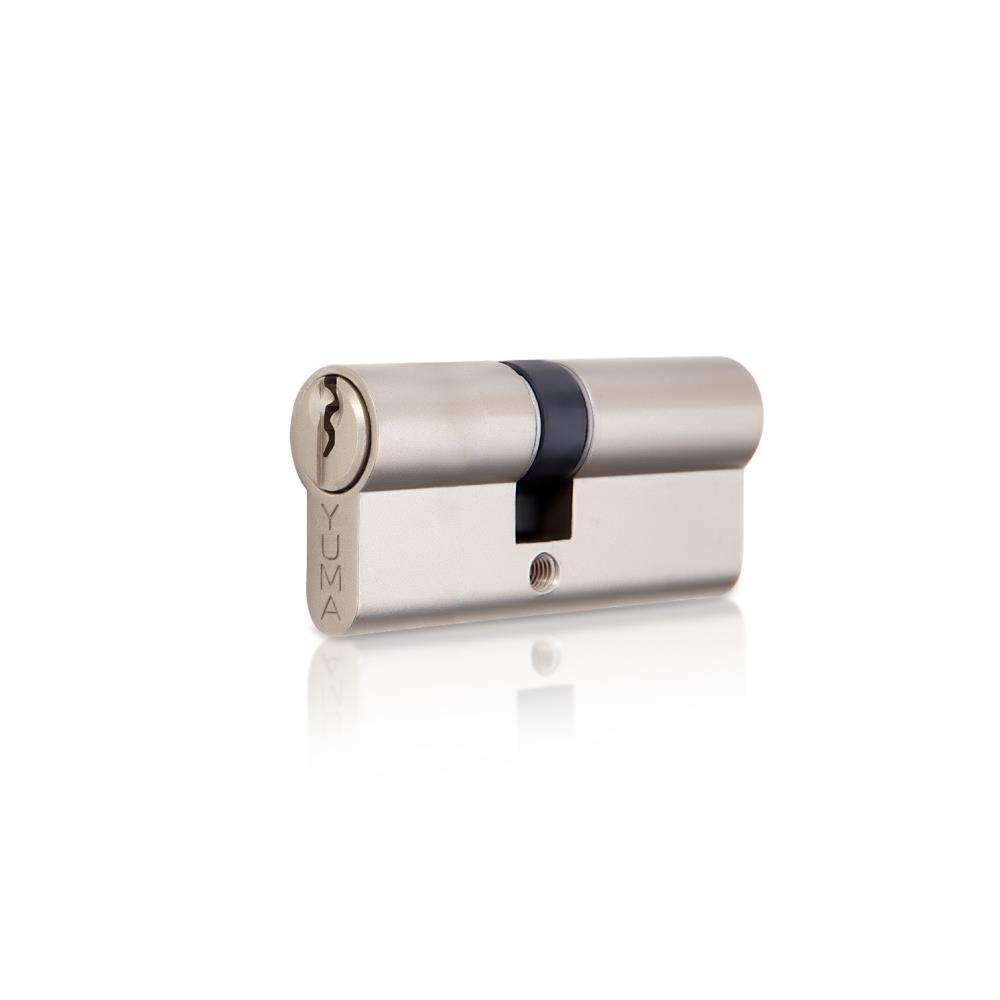

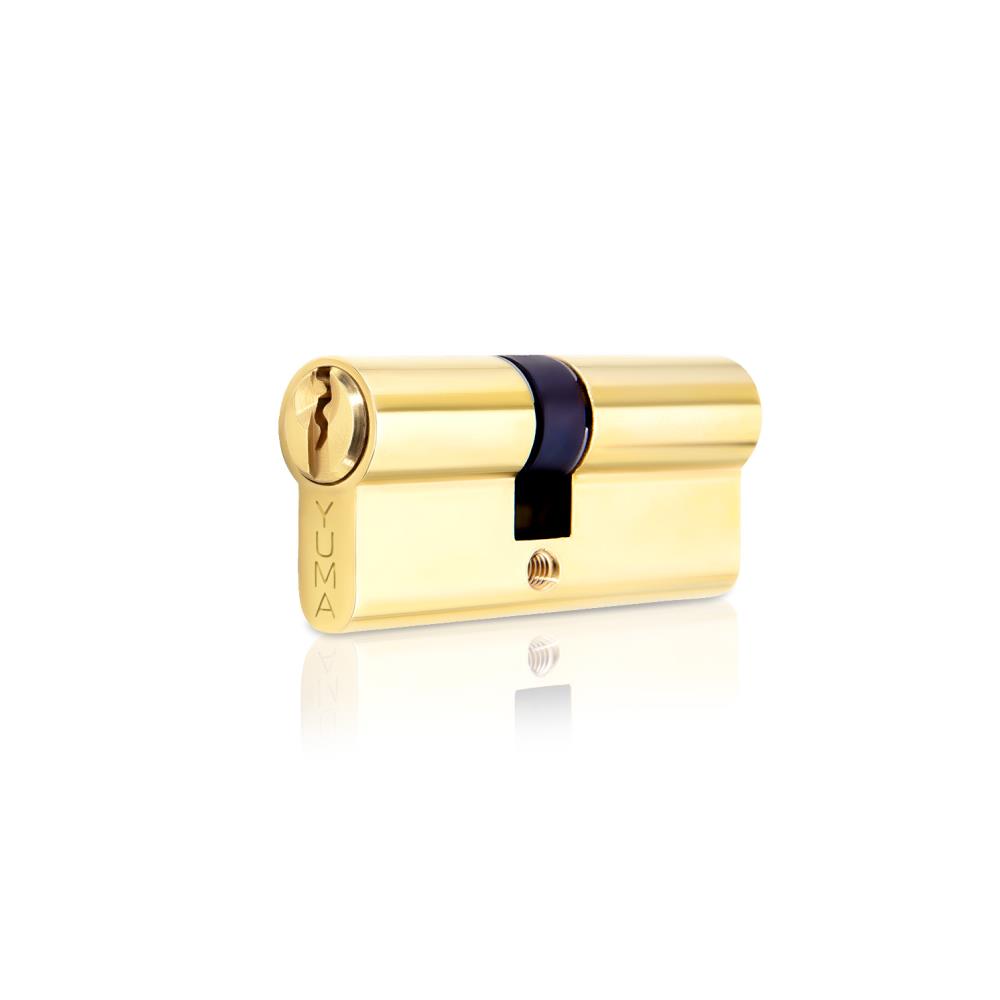

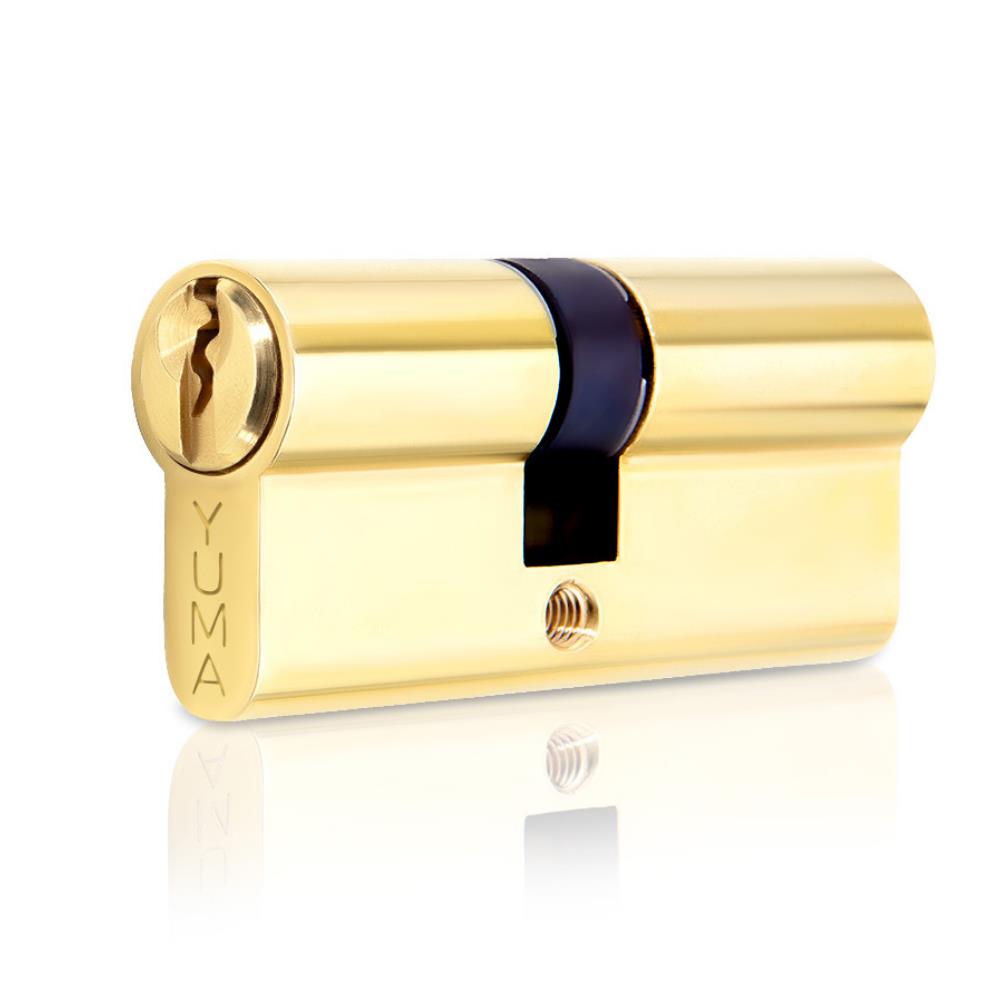

YUMA STANDART PİRİNÇ CERMAN SİLİNDİR

• Euro Norm MS 58 pirinç profıl silindir ve pimler
• Sinter Döküm Kam
• Paslanmaz Yaylar
• Dijital teknoloji anahtar kombinasyonu
• Hırsızlığa karşı opsiyonel tuzak sistemi
• Saten / Nikel / Antik Kaplama Gövde
• Opsiyonel Pass veya Master sistem

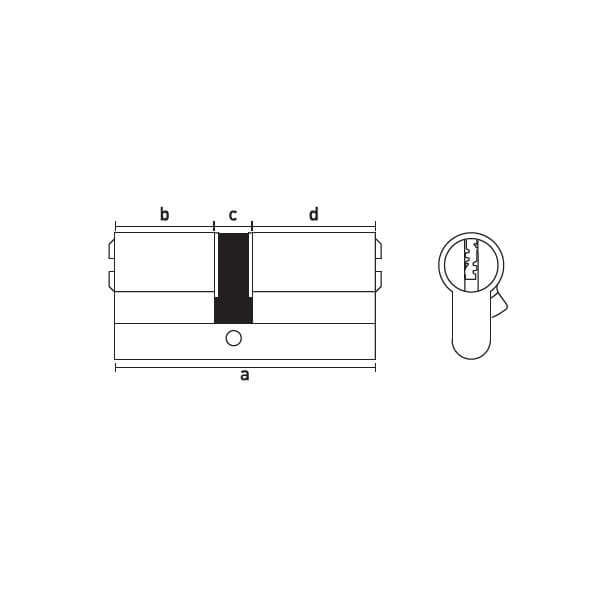

STANDART PİRİNÇ CERMAN SİLİNDİR Teknik Çizim

STANDART PİRİNÇ CERMAN SİLİNDİR * STANDARD NORMAL KEY BRASS CYLINDER
Model	Ürün Cinsi	Koli İçi Adet	Ölçüler Dimensions				Birim Ağırlık
Code	Description	Bundle Piece	a	b	c	d	Unit Weight
YM B68	68mm Cerman Barel / 68mm Normal Key Cylinder	120	68	26	10	32	214 gr
YM B68V	68mm Cerman Barel Blister Ambalaj / 68mm Normal Key Cylinder Blister Package	30	68	26	10	32	214 gr
YM B68S	68mm Cerman Barel Saten/ 68mm Normal Key Cylinder Satin	120	68	26	10	32	214 gr
YM B41S	41mm Cerman Yarım Barel Saten/ 41mm Normal Key Half Cylinder Satin	120	41	26	10	5	135 gr
YM B55S	55mm Cerman Yarım Barel Saten/ 55mm Normal Key Half Cylinder Satin	120	55	40	10	5	172 gr
YM B62	62mm Cerman Barel / 62mm Normal Key Cylinder	120	62	26	10	26	160 gr
YM B70	70mm Cerman Barel / 70mm Normal Key Cylinder	120	70	30	10	30	219 gr
YM B83S	83mm Cerman Barel Saten/ 83mm Normal Key Cylinder Satin	96	83	33	10	40	256 gr
YM B90S	90mm Cerman Barel Saten/ 90mm Normal Key Cylinder Satin	96	90	35	10	45	276 gr
YM B100	100mm Cerman Barel / 100mm Normal Key Cylinder	96	100	40	10	50	310 gr
