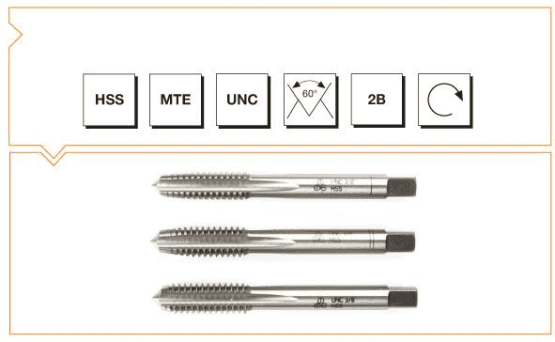

MTE HSS MTE Normu USA Normal Vidalı 3'lü Takım Kılavuzu - UNC
MTE HSS MTE Normu USA Normal Vidalı 3'lü Takım Kılavuzu - UNC
| Ürün Kodu | d1 UNC | P adım G/Inch | L1 (mm) | L2 (mm) | d2 (mm) | k (h12) (mm) |
| B00100140350 | Nr. 6 | 32 | 45 | 13 | 4,0 | 3,0 |
| B00100140417 | Nr. 8 | 32 | 45 | 13 | 4,5 | 3,4 |
| B00100140483 | Nr. 10 | 24 | 50 | 16 | 6,0 | 4,9 |
| B00100140549 | Nr. 12 | 24 | 50 | 16 | 6,0 | 4,9 |
| B00100140635 | 1/4" | 20 | 50 | 19 | 6,0 | 4,9 |
| B00100140794 | 5/16" | 18 | 56 | 22 | 6,0 | 4,9 |
| B00100140952 | 3/8" | 16 | 70 | 24 | 7,0 | 5,5 |
| B00100141111 | 7/16" | 14 | 70 | 24 | 8,0 | 6,2 |
| B00100141270 | 1/2" | 13 | 75 | 29 | 9,0 | 7,0 |
| B00100141429 | 9/16" | 12 | 80 | 30 | 11,0 | 9,0 |
| B00100141587 | 5/8" | 11 | 80 | 32 | 12,0 | 9,0 |
| B00100141905 | 3/4" | 10 | 95 | 40 | 14,0 | 11,0 |
| B00100142222 | 7/8" | 9 | 100 | 40 | 18,0 | 14,5 |
| B00100142540 | 1" | 8 | 110 | 50 | 20 | 16 |
| B00100143175 | 1 1/4" | 7 | 125 | 56 | 25 | 20 |
| B00100143810 | 1 1/2" | 6 | 150 | 63 | 32 | 24 |
| B00100144445 | 1 3/4" | 5 | 160 | 70 | 36 | 29 |
| B00100145080 | 2" | 4.5 | 180 | 75 | 40 | 32 |
