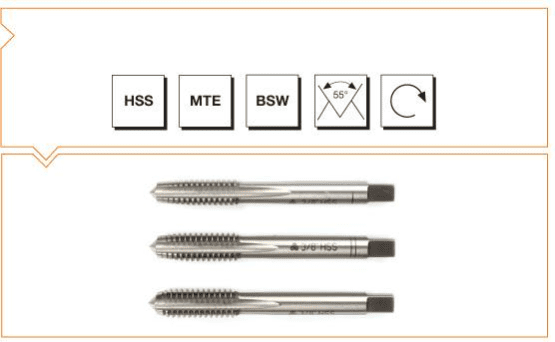

MTE HSS MTE Normu Whitworth Normal Vidalı 3'lü Takım Kılavuzu
MTE HSS MTE Normu Whitworth Normal Vidalı 3'lü Takım Kılavuzu
| Ürün Kodu | d1 BSW | P adım G/Inch | L1 (mm) | L2 (mm) | d2 (mm) | k (h12) (mm) |
| B00100100317 | W 1/8" | 40 | 40 | 11 | 3,5 | 2,7 |
| B00100100397 | W 5/32" | 32 | 45 | 13 | 4,5 | 3,4 |
| B00100100476 | W 3/16" | 24 | 50 | 16 | 6,0 | 4,9 |
| B00100100556 | W 7/32" | 24 | 50 | 16 | 6,0 | 4,9 |
| B00100100635 | W 1/4" | 20 | 50 | 19 | 6,0 | 4,9 |
| B00100100794 | W 5/16" | 18 | 56 | 22 | 6,0 | 4,9 |
| B00100100952 | W 3/8" | 16 | 70 | 24 | 7,0 | 5,5 |
| B00100101111 | W 7/16" | 14 | 70 | 24 | 8,0 | 6,2 |
| B00100101270 | W 1/2" | 12 | 75 | 29 | 9,0 | 7,0 |
| B00100101429 | W 9/16" | 12 | 80 | 30 | 11,0 | 9,0 |
| B00100101587 | W 5/8" | 11 | 80 | 32 | 12,0 | 9,0 |
| B00100101905 | W 3/4" | 10 | 95 | 40 | 14,0 | 11,0 |
| B00100102222 | W 7/8" | 9 | 100 | 40 | 18,0 | 14,5 |
| B00100102540 | W 1" | 8 | 110 | 50 | 20,0 | 16,0 |
| B00100102857 | W 1 1/8" | 7 | 125 | 56 | 22 | 18,0 |
| B00100103175 | W 1 1/4" | 7 | 125 | 56 | 25 | 20 |
| B00100103492 | W 1 3/8" | 6 | 150 | 63 | 28 | 22 |
| B00100103810 | W 1 1/2" | 6 | 150 | 63 | 32 | 24 |
| B00100104445 | W 1 3/4" | 5 | 160 | 70 | 36 | 29 |
| B00100105080 | W 2" | 4.5 | 180 | 75 | 40 | 32 |
