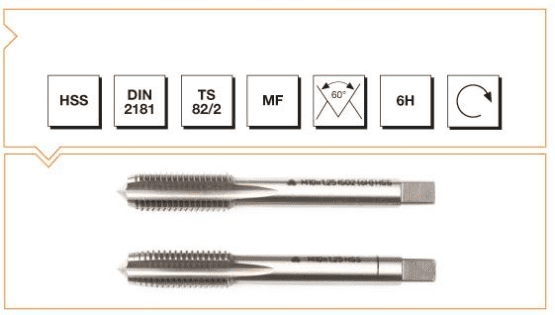

MTE HSS DIN 2181 Metrik İnce Vidalı 2'li Takım Kılavuzu

Ürün Kodu	d1 (mm)	P adım	L1 (mm)	L2 (mm)	d2 (mm)	k (h12) (mm)
B00102030302	M 3	0.35	40	89	3.5	2.7
B00102030352	M 3,5	0.35	45	10	4	3,0
B00102030402	M 4	0.35	45	10	4.5	3,4
B00102030403	M 4	0.5	45	12	4.5	3,4
B00102030503	M 5	0.5	50	14	6	4,9
B00102030603	M 6	0.5	56	14	6	4,9
B00102030604	M 6	0.75	56	18	6	4,9
B00102030803	M 8	0.5	56	18	6	4,9
B00102030804	M 8	0.75	56	22	6	4,9
B00102030805	M 8	1	63	24	6	4,9
B00102031000	M 10	1.25	70	20	7	5.5
B00102031003	M 10	0.5	63	20	7	5.5
B00102031004	M 10	0.75	63	20	7	5.5
B00102031005	M 10	1	63	20	7	5.5
B00102031100	M 11	1.25	63	20	7	5.5
B00102031105	M 11	1	63	22	8	6.2
B00102031200	M 12	1.25	70	22	9	7,0
B00102031205	M 12	1	70	22	9	7,0
B00102031206	M 12	1.5	70	22	9	7,0
B00102031400	M 14	1.25	70	22	11	9,0
B00102031405	M 14	1	70	22	11	9,0
B00102031406	M 14	1.5	70	22	11	9,0
B00102031505	M 15	1	70	22	12	9,0
B00102031506	M 15	1.5	70	22	12	9,0
B00102031605	M 16	1	70	22	12	9,0
B00102031606	M 16	1.5	70	22	12	9,0
B00102031805	M 18	1	80	22	14	11,0
B00102031806	M 18	1.5	80	22	14	11,0
B00102031808	M 18	2	80	22	14	11,0
B00102032005	M 20	1	80	22	16	12,0
B00102032006	M 20	1.5	80	22	16	12,0
B00102032008	M 20	2	80	22	16	12,0
B00102032205	M 22	1	80	22	18	14,5
B00102032206	M 22	1.5	80	22	18	14,5
B00102032208	M 22	2	80	22	18	14,5
B00102032405	M 24	1	90	22	18	14,5
B00102032406	M 24	1.5	90	22	18	14,5
B00102032408	M 24	2	90	22	18	14,5
B00102032506	M 25	1.5	90	22	18	14,5
B00102032606	M 26	1.5	90	22	18	14,5
B00102032608	M 26	2	90	22	18	14,5
B00102032706	M 27	1.5	90	22	20	16,0
B00102032708	M 27	2	90	22	20	16,0
B00102032806	M 28	1.5	90	22	20	16,0
B00102032808	M 28	2	90	22	20	16,0
B00102033006	M 30	1.5	90	22	22	18,0
B00102033008	M 30	2	90	22	22	18,0
B00102033206	M 32	1.5	90	22	22	18,0
B00102033208	M 32	2	90	22	22	18,0
B00102033308	M 33	2	100	25	25	20,0
B00102033406	M 34	1.5	100	25	28	22,0
B00102033506	M 35	1.5	100	25	28	22,0
B00102033606	M 36	1.5	100	25	28	22,0
B00102033608	M 36	2	125	40	28	22,0
