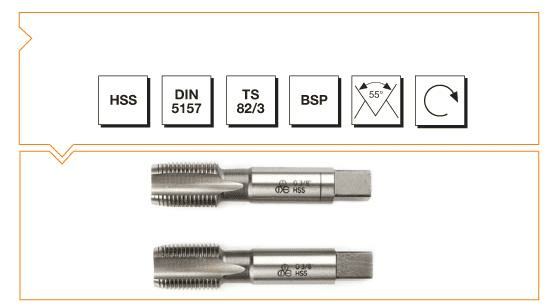

MTE HSS DIN 5157 Whitworth Boru Vidalı 2'li Takım Kılavuzu
MTE HSS DIN 5157 Whitworth Boru Vidalı 2'li Takım Kılavuzu
| Ürün Kodu | d1 BSP | P adım G/Inch | L1 (mm) | L2 (mm) | d2 (mm) | k (h12) (mm) |
| B00102300973 | G 1/8" | 28 | 63 | 18 | 7 | 5,5 |
| B00102301316 | G 1/4" | 19 | 70 | 21 | 11 | 9 |
| B00102301666 | G 3/8" | 19 | 70 | 21 | 12 | 9 |
| B00102302095 | G 1/2" | 14 | 80 | 22 | 16 | 12 |
| B00102302291 | G 5/8" | 14 | 90 | 25 | 18 | 14.5 |
| B00102302644 | G 3/4" | 14 | 90 | 22 | 20 | 16 |
| B00102303020 | G 7/8" | 14 | 100 | 28 | 22 | 18 |
| B00102303325 | G 1" | 11 | 100 | 25 | 25 | 20 |
| B00102304191 | G 1 1/4" | 11 | 125 | 31 | 32 | 24 |
| B00102304780 | G 1 1/2" | 11 | 140 | 31 | 36 | 29 |
| B00102305375 | G 1 3/4" | 11 | 140 | 33 | 40 | 32 |
| B00102305961 | G 2" | 11 | 160 | 37 | 40 | 35 |
